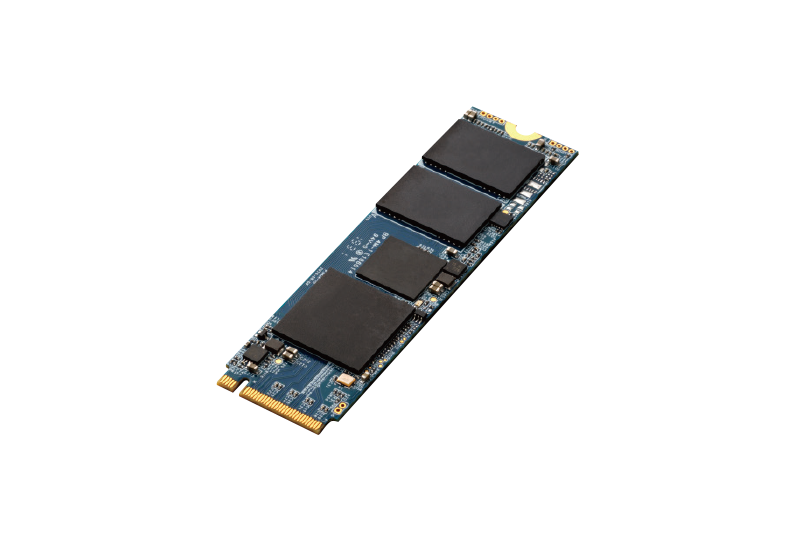

M.2 2280

FSN8E-W Series
  • Specifications
  • Model No.
  • Related Materials
LIG-JB17P

SPECIFICATIONS

Model Name FSN8E-W Series
Interface PCIeGen 4 x 4
Flash Type 3D TLC
Formfactor M.2 2280
Capacity 960GB～3,840GB
Dimension（mm） 22.00 x 80.00 x 3.600
Sequential Read/Write(MB/s) 2,850 / 2,750
Supply Voltage 3.3V±5%
Shock resistance 14,709 m/s2 (1500G) (MAX)
Vibration resistance 160.0 m/s2 16.4G peak (10-2,000 Hz)
Storage temperature -40℃～85℃
Operating temperature Standard Temperature product(0℃～70℃)
Wide Temperature product(-40℃～85℃)
TBW 750TB～4,060TB

MODEL NUMBER

Standard Temperature product(0℃～70℃） Wide Temperature product（‐40℃～85℃）
960GB FSN8E-960GW**CN FSN8E-960GW**DI
1920GB FSN8E-1920W**CN FSN8E-1920W**DI
3840GB FSN8E-3840W**CN FSN8E-3840W**DI
